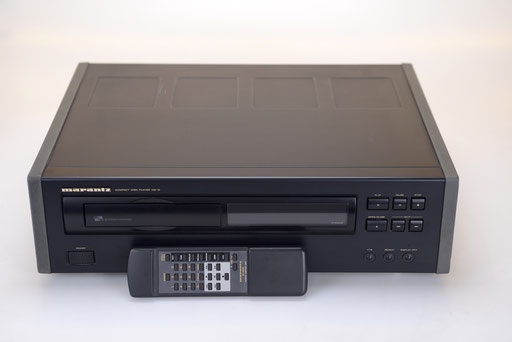

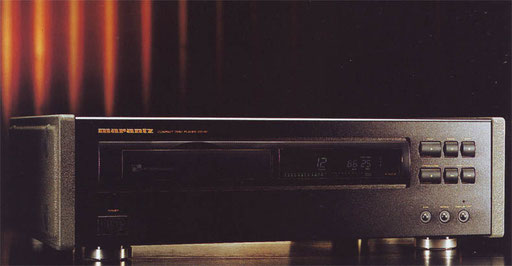

MARANTZ CD 10

Non ho molte foto del CD10, purtroppo ancora non avevo, anzi, ancora non esistevano le fotocamere digitali all'epoca del Marantz CD10 e così, ho solo questa foto insieme al mio impianto di quel momento, tutto targato Audio Innovations, il First, finale a valvole 2A3 da 7,5 watt per canale in classe A ed il pre modello 1000, passivo per la linea, attivo per la parte Phono (forse uno dei migliori pre-phono mai costruiti dall'uomo)

Prima del CD10, nella catena era inserito il CD80, di cui eredita il posto e dal quale prende molto, oltre che nell'estetica anche nella tecnica.

Meccanica Philips CDM1pro...........TO BE CONTINUED

Specifications Marantz CD-10



Audio Characteristics

Channels: 2

D/A conversion: 1-bit linear/channel

Frequency Characteristics

Line output jack: 20 to 20.000Hz, +/-0,2dB

Dynamic range: 96dB

S/N ratio: 108dB

Channel separation: 100dB or more (1kHz)

THD: 0,0015% (1kHz)

Wow & flutter: Precision of quartz

Analog output jacks:

Line output jacks:

Output level: 2VRms

Output impedance: 100 Ohms

Matching load impedance: 10k Ohms or more

Digital output: Pin jack, 0.5 Vp-p/75 Ohms (rectangular optical connector, optical output -19dBm

Optical Readout System

Laser: AlGsAs semiconductor

Wavelength: 780nm

Signal system

Sampling frequency: 44.1kHz

Quantization: 16-bit linear/channel

Error correction: Cross-interleave read solomon code (CIRC) class A D/A conversion

Power supply

Voltage: 230V

Line frequency: 50Hz or 60Hz

Power consumption: 18W

Cabinet, etc.

Dimensions (wxhxd): 457x136x358mm

Weight: approx: 16.5kg

Accessoires

Remote control unit (Marantz RC-10 CD): 1

Dimensions (wxhxd): 60x15x175mm

Weight (without batteries) 85g

R03 batteries: 2

Stereo audio cable with RCA pins: 1 Pair

Digital signal cable with RCA pins: 1
